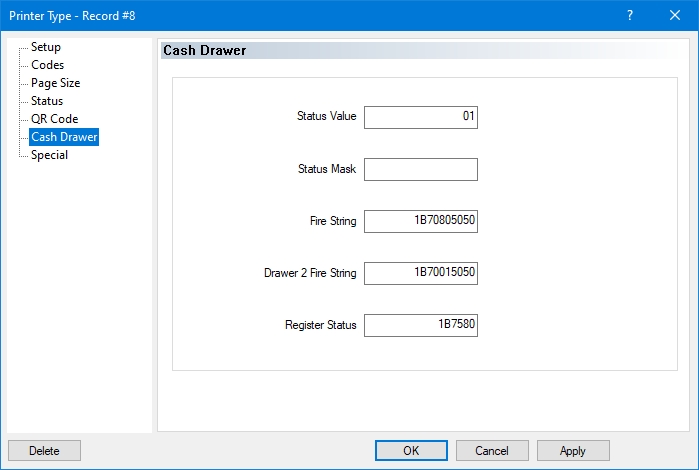

Printer Types - Cash Drawer

Printer Type - Cash Drawer Branch

Status Value

Type in the cash drawer code the Back-Office sends to the cash drawer to inquire about the cash drawer's status. The code determines if the cash drawer is open or closed.

Status Mask

Type in the cash drawer code sends to the Back-Office that should be compared to the status value for checking the status of the cash drawer.

Fire String

Type in the cash drawer code sent to open the cash drawer.

Drawer Two Fire String

Type in the cash drawer code sent to open a second cash drawer connected to the same printer.

NOTE: For Epson printers, set this field to "1B70015050". You need an Epson Cable Adapter for Two Cash Drawers, available from Blue Star Canada, who manufactures it as Part # EPCB2TIR. They can be reached at 1 [phone] or https://www.bluestarinc.com/

Register Status

Type in the code to compare with the status to inquire about the drawer status.
