Printers

Workstation Options - Printers

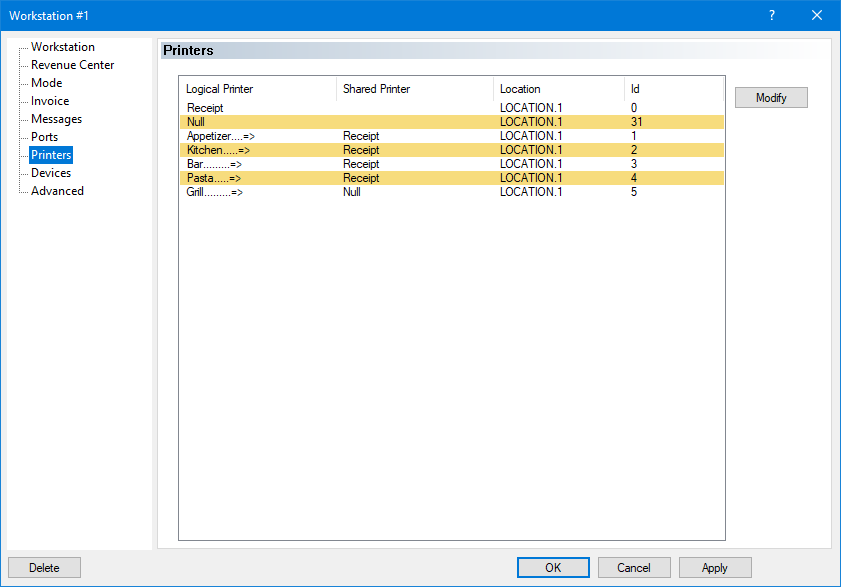

The Printers branch of the workstation options allows you to configure the output for each logical printer, as well as the Inventory Location to use if the Inventory Management module with the Multi-Location option is present.

Printers

Button - Modify

Select a logical printer from the table and click the Modify button to edit its properties.

Logical Printer

This column lists all available logical printers. The first two entries (Receipt and Default) cannot be modified, except for KDS IP Redirection and Inventory Location. The other entries in this list are configured in Point of Sale Control > Workstation > Logical Printer...

Shared Printer

This column lists which shared printer is associated with each logical printer.

Location

This column is only available if the Inventory Management module with the Multi-Location option is activated on the Maitre'D license. It lists the Inventory Locations from which inventory quantities should be depleted for each logical printer.

Id

This column lists the internal ID associated with each logical printer.
