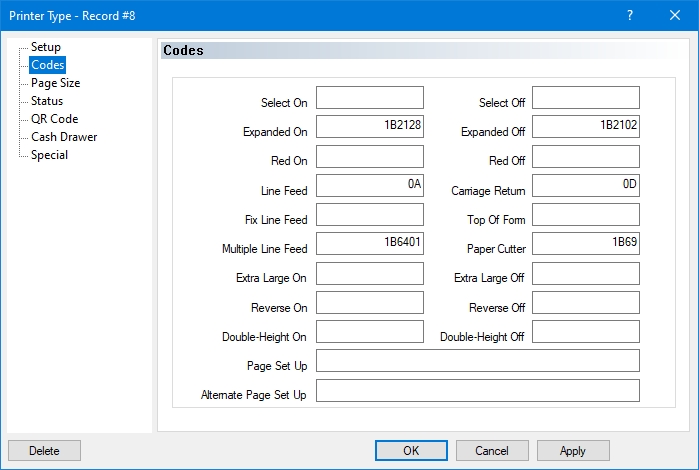

Printer Types - Codes

Select On

Type in the printer code to determine which printer prints first when all of your printers are linked together.

Select Off

Type in the printer code that cancels "Select On".

Expanded On

Type in the printer code that activates the printing of characters in a larger type size.

Expanded Off

Type in the printer code that cancels "Expanded On".

Red On

Type in the printer code to select another printer ink color if the printer prints in more than one color.

Red Off

Type in the printer code that cancels "Red On".

Line Feed

Type in the printer code that activates the line feed function.

Carriage Return

Type in the hexadecimal printer code that tells the printer to begin printing on the left side of the paper.

Fix Line Feed

Type in the printer code that activates the line feed function.

Top of Form

Type in the hexadecimal printer code that tells the printer to advance to the top of the form. This code has no meaning in slip printers.

Multiple Line Feed

Type in the printer code that activates the multiple line feed (form feed) function.

Paper Cutter

Type in the printer code that activates the paper cutting function. If you have a slip printer, type in the code used to release the paper.

Extra Large On

Enter the hexadecimal printer code that activates the printing of characters in extra large type size.

NOTE: Epson TM-88 = 1D2167

NOTE: The Extra Large mode can be used to print the Order Number on top of the check by adding the following configuration keys & values in the POS.INI files of the workstations:

PrintOrderNumOnTop=True
PrintBigOrderNumInvoice=True

The Extra Large mode can be used to print the Order Number on the kitchen chit by adding the following configuration key & value:

PrintBigOrderNumKitchen=True

Extra Large Off

Enter the hexadecimal printer code that cancels "Extra Large On".

NOTE: Epson TM-88 = 1D2180

Reverse On

Enter the hexadecimal printer code that activates the printing of characters in white on black.

NOTE: Epson TM-88 = 1D4201

Reverse Off

Enter the hexadecimal printer code that cancels "Reverse On".

NOTE: Epson TM-88 = 1D4280

Double-Height On

Enter the hexadecimal printer code that activates the printing of characters in double height type size.

Double-Height Off

Enter the hexadecimal printer code that cancels "Double-Height On".

Page Set Up

Type in the hexadecimal printer code that the Back-Office uses to prepare the printer for printing a check. If you have a slip printer, this code is sent when you insert a sheet of paper.

NOTE: To print the restaurant Logo on a compatible printer, enter the proper hexadecimal code here and enable the Logo option of Point of Sale Control > Workstation > Printer Type > Setup. To print the restaurant name and address under the Logo, enable the Print Logo And Address option of Point of Sale Control > Revenue Center > Options > Check.

Alternate Page Set Up

Type in the hexadecimal printer code that the Back-Office can use to prepare the printer for printing a reward coupon with an alternate Logo.
